Virtual Galaxy (Standard Body 39/32/12)


  • Please log in to reply
21 replies to this topic

#1 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 22 February 2013 - 03:43 AM

Let me first apologize for offending anybody's sensibilities WRT converting a machine that could have likely been "saved". I spent about a month trying to rustle up a power supply so I could begin to determine what all was damaged when the previous owner replaced the fuses with foil and the transformer melted down. I found a different complete, working Galaxy for $400 and decided my electronically burned out unit would be much more valuable to me as a simulator. I'm sure not all the electronics were toasted, but I refused to start shotgunning a bunch of parts at what likely would cost triple a superior replacement. Many said I should trade it for a stripped cab or build a flatpack. Stripped cabs are like hen's teeth around here and flatpacks are too much work and money. I decided to do what was best for me, my time and my wallet. I surely would have traded this machine out for another standard cab, but it took me over half a year to find this one. I enjoy and appreciate the genuine patina of 30 years of abuse and will keep the original paint as-is.



This machine will have a slightly recessed playfield, a borderless backglass and a 12" laptop LCD DMD. No force feedback. Budget $1500.



How I got it:









Time to get started:






Burnt transformer:






Front of cabinet and coin door:






Cabinet cleaned out:









Packed up for the day:








I will use this post to document the components and costs of the project.



Galaxy Pinball Machine from local sale                       $100

Westinghouse 39" LED EW39T6MZ from Best Buy    $328

Westinghouse 32" LED UW32S3PW  from Best Buy  $210

Intel Core i3-2120 3.3Ghz LGA1155 CPU                  $115

ULTRA LSP750 750W ATX POWER SUPPLY              $70

Gigabyte Intel Z77 CrossfireX ATX Mobo                   $105

Corsair Vengeance 4GB DDR3 1600MHz                    $25

Galaxy Nvidia Gforce GTS250 DDR3  #1                     $39

Galaxy NVIDIA GTS250 GDDR3   #2                           $45

Kingston 64GB SSD                                                     $69

Encoder (AVR Minimus)                                               $15

Fused Power Jack                                                         $5

Laptop LCD Panel (12.1")                                            $17

Laptop LCD Controller                                                 $27

LCD Mounting Supplies                                                 $9

Rosewill Fan Newegg                                                    $7

Misc Electrical Plunger Sw                                           $15

USB Cables                                                                  $8

1”x2”x8' Ace Hardware                                                $4

Speakers Ebay                                                           $23

Lepai Amplifier Ebay                                                   $11

Cam Lock                                                                   $7





For a grand total of $1254


Edited by MTPPC, 13 June 2013 - 04:37 PM.


#2 nebrunner

nebrunner

    Enthusiast

  • Platinum Supporter
  • 254 posts
  • Location:Omaha

  • Flag: ---------

  • Favorite Pinball: BIG GUNS!!!

Posted 22 February 2013 - 04:55 AM

Congrats on your score, that is an incredibly beautiful old cabinet!



#3 chas

chas

    Pinball Fan

  • Banned
  • PipPipPipPip
  • 1,791 posts

  • Flag: ---------

  • Favorite Pinball: i played Timezone, quickdraw, triple action, frontier and a few more

Posted 22 February 2013 - 05:42 AM

you have got to kidding.

the owner used foil for a fuse?

omg.....


Edited by chas, 22 February 2013 - 05:43 AM.


#4 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 22 February 2013 - 06:21 AM

you have got to kidding.

the owner used foil for a fuse?

omg.....

Yes. This is how its done:






#5 Shakenbake

Shakenbake

    Enthusiast

  • Members
  • PipPipPip
  • 230 posts

  • Flag: United States of America

  • Favorite Pinball: Funhouse

Posted 22 February 2013 - 02:29 PM

sadly I've seen that many of times.



#6 jeepguy81

jeepguy81

    Neophyte

  • Members
  • Pip
  • 4 posts

  • Flag: United States of America

  • Favorite Pinball: terminator 2

Posted 22 February 2013 - 09:05 PM

Ha that's pretty special right there. Sent from my PC36100 using Tapatalk 2

#7 chas

chas

    Pinball Fan

  • Banned
  • PipPipPipPip
  • 1,791 posts

  • Flag: ---------

  • Favorite Pinball: i played Timezone, quickdraw, triple action, frontier and a few more

Posted 23 February 2013 - 04:45 AM

you have got to kidding.

the owner used foil for a fuse?

omg.....

Yes. This is how its done:




i know how it is done.

seen it before in cars in the fuse box and some other things.

there are 6 fuses.

2 have foil.

does the board have a short on those circuits or was the owner totally clueless?



#8 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 26 February 2013 - 07:52 AM

Yesterday I made a big mess with the router to fit the 32" monitor in  the back box. The hardest part was cutting the top off the back box in a way that I could reuse it. I didn't get any pictures of cutting ott the top, but got some of the routering:









The TV fit quite nicely:






Next up was hacking the power button on the backglass. Surface mount boards are hard to work on, but I got lucky and scored on my first try:












A view from the back:






Now I am trying to decide if I need to put glass over the TV. It looks really good without it and I think I can make a nick looking transition from a wood speaker/dmd grill to the actual TV:









How it looks with 4:3 image:






Now I am stumped on how to hack the 39". I can't get it open and don't know what i'd find if I could. I'm thinking about a linkage that physically pushes the power button and starts the computer and the BG TV at the same time.



#9 nebrunner

nebrunner

    Enthusiast

  • Platinum Supporter
  • 254 posts
  • Location:Omaha

  • Flag: ---------

  • Favorite Pinball: BIG GUNS!!!

Posted 26 February 2013 - 05:03 PM

I would go with glass or plexi over the backglass monitor.

#10 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 27 February 2013 - 06:47 AM

Thanks to shakenbake, I got my playfield hacked and mounted in the cabinet. Computer parts arrive tomorrow or the next day. Hope to have a working simulator by the weekend. The last technical challenge will be constructing the speaker grill and mounting the 12.1" laptop screen. Does anyone happen to know the aspect ratio of a modern dmd?



#11 bob78954

bob78954

    Enthusiast

  • Platinum Supporter
  • 257 posts
  • Location:Round Top,Texas

  • Flag: United States of America

  • Favorite Pinball: Royal Flush,Fish Tales

Posted 27 February 2013 - 10:06 PM

Looking good, Thats how I built my backbox (except I just cut in half and scabbed around the 32'' flat). I used the exact same brand of flats as you did..nebrunner is right just a piece of .090 plexiglass works great to cover BG monitor. You can get it Lowe's for around $20.00



#12 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 28 February 2013 - 03:50 PM

I got my laptop LCD in. A small groove routered into the backbox bottom should make for a perfect fit:






All the computer components are in but the SSD. I installed XP Pro, all the updates, the 2 video cards and drivers and VP, FP and HP all onto a spare drive. I'm going to use easus diskcopy to copy this drive to the ADATA 32GB SSD when it arrives. I'm also waiting for the controller for that laptop LCD so I'm just using a monitor for now:






#13 Nemo

Nemo

    Pinball Fan

  • Platinum Supporter
  • 1,251 posts
  • Location:Netherlands

  • Flag: Netherlands

  • Favorite Pinball: Monster Bash

Posted 28 February 2013 - 04:47 PM

So you've "hacked" the 39" i presume for the power button, did you decase it to fit your cab ?

That's a Stern Galaxy from 1980, what is the internal width from sidepanel to sidepanel, and

how much clearance is there ? This as i'm contemplating on fitting a Williams System 11 cab

with a 39" LED panel and i still have to figure out if it will fit !


Gone fishin', no really.......

My F14 Cab http://www.vpforums....showtopic=21820

My Coffee Table http://www.vpforums....topic=25407&hl=

My Jukebox WIP http://www.vpforums....topic=23825&hl=


#14 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 28 February 2013 - 05:45 PM

The case is a hair under 20.5" inside. The TV does not have to be decased. The clearance is maybe 1/16" total.



#15 Nemo

Nemo

    Pinball Fan

  • Platinum Supporter
  • 1,251 posts
  • Location:Netherlands

  • Flag: Netherlands

  • Favorite Pinball: Monster Bash

Posted 01 March 2013 - 03:58 PM

Thanx !


Gone fishin', no really.......

My F14 Cab http://www.vpforums....showtopic=21820

My Coffee Table http://www.vpforums....topic=25407&hl=

My Jukebox WIP http://www.vpforums....topic=23825&hl=


#16 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 01 March 2013 - 04:44 PM

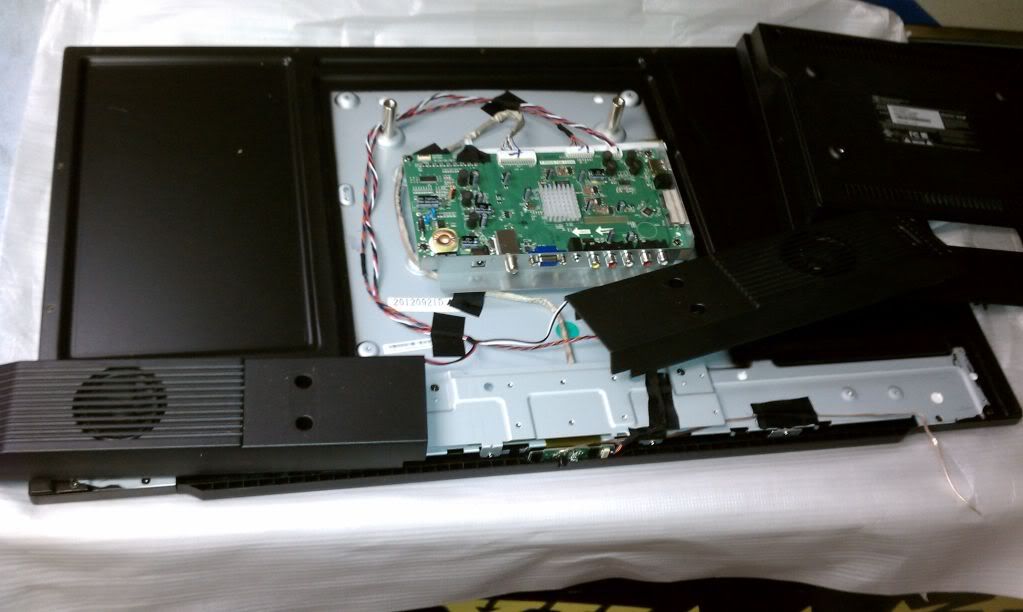

Change of plans: I'm going to use a spare 15" LCD for the 3rd monitor. I realized if I take the speakers and the mounting post socket off the back of the TV, the DMD screen will be recessed by less than an inch. I expect the final dmd size will be about 12"x3" instead of 10" x 2.5". I may even use a 17" once I get to fitting it.



#17 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 05 March 2013 - 03:52 AM

Things are coming together quite nicely. I am fighting with a flaky SSD, but otherwise, the cabinet and backbox interiors are done. I got some photos:



The backside of the power fuse/jack/switch






The encoder and amp:






The external USB/headphone jack:






The coin, escape and power switches in the bottom of the cabinet:






The plunger switch:






The power cords mounted on the side of the cabinet:






And the Playfield TV mounting with the PC beneath:






#18 Nemo

Nemo

    Pinball Fan

  • Platinum Supporter
  • 1,251 posts
  • Location:Netherlands

  • Flag: Netherlands

  • Favorite Pinball: Monster Bash

Posted 05 March 2013 - 04:12 PM

As for many SSD issues, please DO enable AHCI in Bios/Uefi, mostly this is left to SATA mode causing problems.



Love the plunger switch, easy and effective !


Gone fishin', no really.......

My F14 Cab http://www.vpforums....showtopic=21820

My Coffee Table http://www.vpforums....topic=25407&hl=

My Jukebox WIP http://www.vpforums....topic=23825&hl=


#19 MTPPC

MTPPC

    Enthusiast

  • Members
  • PipPipPip
  • 352 posts
  • Location:Big Sky, Montana USA

  • Flag: ---------

  • Favorite Pinball: Mata Hari .directB2S

Posted 10 March 2013 - 03:52 AM

I resolved my SSD problems by replacing the ADATA with a Kingston. I used Easeus Diskcopy to dump the disk and then used gparted to align the SSD. I installed a 120mm fan in the original speaker hole underneath to push air through the box. It seems to be enough and it's wired to the mobo header so if the computer demands more cooling, it will speed up the fan. The next task was to make the DMD grill. I had never done any routering like this before, so the results were a little less than acceptable. Because of this I just nailed it in with a brad nailer and didn't use any glue. Perhaps some day I will build another or order on made on a CNC. The other option is to install some 6.5" automotive speakers and use their grills to cover the holes. For now I used the backside of some fake crushed velvet fabric to line the speaker holes.



At any rate, the remaining tasks are:



1. rework the coin mechs and wire them into the encoder.

2. wire 5 volts to the lightbulbs in the coin door.

3. Cut a piece of black styrofoam poster board to fill in the area between the playfield and the back box.






#20 Nemo

Nemo

    Pinball Fan

  • Platinum Supporter
  • 1,251 posts
  • Location:Netherlands

  • Flag: Netherlands

  • Favorite Pinball: Monster Bash

Posted 10 March 2013 - 07:12 AM

It's all coming together, i like the "big" speakers in the grill !


Gone fishin', no really.......

My F14 Cab http://www.vpforums....showtopic=21820

My Coffee Table http://www.vpforums....topic=25407&hl=

My Jukebox WIP http://www.vpforums....topic=23825&hl=
