[vertigoke]

Hello,



First of all I wanted to say that this community is amazing, looking at all the hard work thats done on all those machines.

English is not my first language, so sorry for my grammar.



I'm new to visual pin and emulating.



As I was curious on how the development was voor these machines I started looking into the code and dipping my toes in the scripting. (as a c# dev,VBA is not my prefered language )



So I started playing around with a table rom JD_L1.



I tried to ad a FLEXDMD. But I started getting into issues.

And seems that I can't find good documentation on how to resolve.



my code :



Sub Table1_Init()



    If UseFlexDMD Then FlexDMD_Init



    vpmInit Me



    On Error Resume Next

    With Controller

        .GameName = cGameName

        If Err Then MsgBox "Can't start Game" & cGameName & vbNewLine & Err.Description : Exit Sub

       .SplashInfoLine = "Judge Dredd - Bally 1993" & vbNewLine & "by V-Pin Workshop"

        HandleKeyboard = 0

       .ShowTitle = 0

       .ShowDMDOnly = 1

       .ShowFrame = 0

       .HandleMechanics = 0

        .Hidden = 1



       If UseFlexDMD Then ExternalEnabled = .Games(cGameName).Settings.Value("showpindmd")

       If UseFlexDMD Then .Games(cGameName).Settings.Value("showpindmd") = 0



       On Error Resume Next

       .Run GetPlayerHWnd



       If Err Then MsgBox Err.Description

       On Error Goto 0



   End With

...





Sub FlexDMD_Init() 'default/startup values



' flex dmd variables



If UseFlexDMD = 0 then

Exit Sub

End if



Dim i





On Error Resume Next

Set FlexDMD = CreateObject("FlexDMD.FlexDMD")

On Error GoTo 0



If IsObject(FlexDMD) Then



FlexDMD.GameName = cGameName

  FlexDMD.TableFile = Table1.Filename & ".vpx"

FlexDMD.RenderMode = 2

FlexDMD.Width = 128

FlexDMD.Height = 48

FlexDMD.Clear = True

FlexDMD.Run = True



Set FlexDMDScene = FlexDMD.NewGroup("Scene")



With FlexDMDScene

'populate blank display

.AddActor FlexDMD.NewImage("BackG", "FlexDMD.Resources.dmds.black.png")



.AddActor FlexDMD.NewFrame("Frame")

.GetFrame("Frame").Visible = True

.GetFrame("Frame").Height = 48

.GetFrame("Frame").Width= 128

.GetFrame("Frame").Fill= True

.GetFrame("Frame").Thickness= 1





End With



FlexDMD.LockRenderThread

FlexDMD.Stage.AddActor FlexDMDScene



FlexDMD.Show = True

FlexDMD.UnlockRenderThread





Else



UseFlexDMD = 0



End If

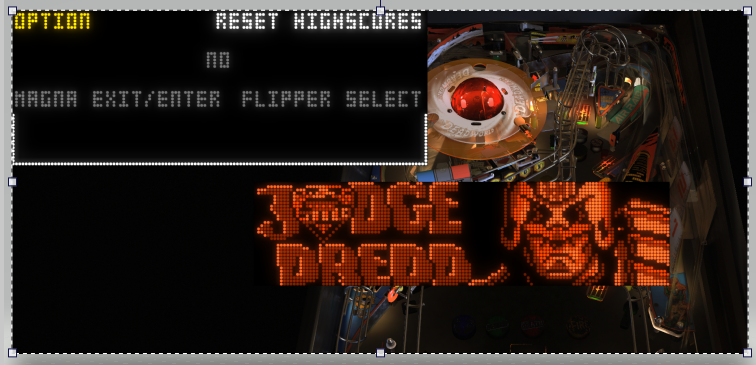

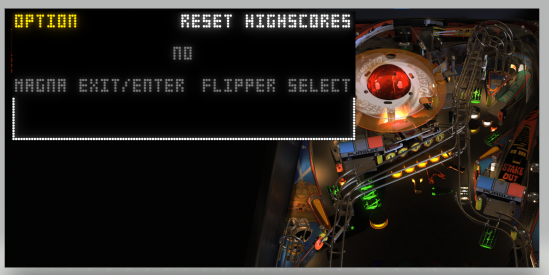

this results in a black screen in DMDFlex, i added a custom menu , this is shown in the FLEXDMD when i add scene





if I TURN ON  use external dll so   Freezy's dll with    If UseFlexDMD Then .Games(cGameName).Settings.Value("showpindmd") = 1,

I get 2 FLEXDMD's







my question is there a way to get the



Dim UseVPMDMD

Const UseVPMColoredDMD = True



into the flexDMD.





I hope this makes sense, I'm new to all of this .



Kind regards

E





[jpsalas]

You can't do that, but FlexDMD is using dmdmext and that can you activate in almost all the vpinmame tables (those are tables with a rom).

You do not need any script changes. Just run the table, press F1, and select "Use external DMD", press Ok, restart the table and the DMD will show in a window very very similar to FlexDMD

[vertigoke]

You can't do that, but FlexDMD is using dmdmext and that can you activate in almost all the vpinmame tables (those are tables with a rom).

You do not need any script changes. Just run the table, press F1, and select "Use external DMD", press Ok, restart the table and the DMD will show in a window very very similar to FlexDMD



Thanks a lot !



I found that external DMD window .



So there is no way to get that menu inside of the dmdmext ?

[scutters]







So there is no way to get that menu inside of the dmdmext ?





Nope not as far as i know.

You can't combine the output of a custom flexdmd with a vpinmame rom dmd into one dmdext window
