Totan VPX full graphics rebuild WIP


  • Please log in to reply
328 replies to this topic

#281 flupper1

flupper1

    Enthusiast

  • Members
  • PipPipPip
  • 459 posts
  • Location:Netherlands

  • Flag: Netherlands

  • Favorite Pinball: Visual Pinball

Contributor

Posted 09 August 2019 - 10:48 AM

One of the things on my to do list is to add several LUT files to Totan, since the day night slider has not much (or the desired) effect on Totan. This is due to the heavy use of prerendered textures. You all could help me by creating your favorite LUT. For those of you who do not know what a LUT does, this is the short version:

After everything is rendered in VPX, the LUT file is used to transform the rendered color of every pixel into a another color, depending on a look-up table (which is the LUT file). If the look-up table is neutral, every color will be transformed from one RGB value to the exact same RGB value. In the default table of VPX there is such a file called "ColorGradeLUT256x16_1to1.png". If extra contrast is applied on this LUT file (for instance in photoshop), and the resulting file is used in VPX, then the output on the screen of VPX will also have more contrast.

So, how is here you can help me:



1. Download these three images:










(last one is the same as the file in the VPX default table)



2. Open the cabinet and/or the desktop screenshot file in your favorite photo editing program (like photoshop or GIMP). Experiment with changing brightness, contrast, saturation and so on on these images, until it looks like you want it on either your desktop screen and/or your cabinet. In photoshop you can do this by adding layers with effects on top of the image. It is important to know which changes you have done. Also be aware that what looks good during the day, can look strange in the evening/night.



3. When you are happy with these changes on the screenshots, apply the exact same changes on the LUT file (the png one). So if you have added a layer which increases the contrast on the screenshot, apply the exact same contrast change on the png file. Save this png file to a new name and post the new png in this thread with the following information:

- desktop or cabinet

- brand and type of screen (like samsung and its type number, diameter)

- for daytime or nighttime

- a short summary what type of changes you applied on the LUT



Depending on how many of you create new LUT's, I will include some or all of them in the final release.



#282 Mandolin

Mandolin

    Hobbyist

  • Members
  • PipPip
  • 31 posts

  • Flag: Spain

  • Favorite Pinball: Tales of the Arabian Nights

Posted 09 August 2019 - 11:35 AM

I am definitely doing this. Will try this afternoon (Spain time)  :otvclap:


Edited by Mandolin, 09 August 2019 - 11:35 AM.


#283 vogliadicane

vogliadicane

    Pinball Fan

  • Members
  • PipPipPipPip
  • 517 posts
  • Location:Velbert

  • Flag: Germany

  • Favorite Pinball: The Addams Family

Posted 09 August 2019 - 02:30 PM

Super interesting, Flupper, didn't know that technique, yet.



Will definitely try tonight. I'll compare yours and my result by setting the images left half/right half as desktop wallpaper, so I can compare them in the cab directly.


Edited by vogliadicane, 09 August 2019 - 02:30 PM.


#284 Mandolin

Mandolin

    Hobbyist

  • Members
  • PipPip
  • 31 posts

  • Flag: Spain

  • Favorite Pinball: Tales of the Arabian Nights

Posted 09 August 2019 - 04:16 PM

I have a question, is this LUT sensitive to "hue" adjustment layer in Photoshop? If so, overall color can be affected. I mean, I love the current color scheme, but it would be crazy if you can change the color scheme of every table so easily.


Edited by Mandolin, 09 August 2019 - 04:18 PM.


#285 flupper1

flupper1

    Enthusiast

  • Members
  • PipPipPip
  • 459 posts
  • Location:Netherlands

  • Flag: Netherlands

  • Favorite Pinball: Visual Pinball

Contributor

Posted 09 August 2019 - 04:28 PM

I have a question, is this LUT sensitive to "hue" adjustment layer in Photoshop? If so, overall color can be affected. I mean, I love the current color scheme, but it would be crazy if you can change the color scheme of every table so easily.

Yes, I think so. Just try it on any table...  :good:



#286 batch

batch

    VPFroggie

  • Members
  • PipPipPipPipPip
  • 2,032 posts
  • Location:Center of France

  • Flag: France

  • Favorite Pinball: Anyone if gaming and appearence are great

Posted 09 August 2019 - 04:35 PM

A 3D backdrop, incredible !!!!



I'm gonna be out of work ;)



Will there be lights in the eyes of genius ?



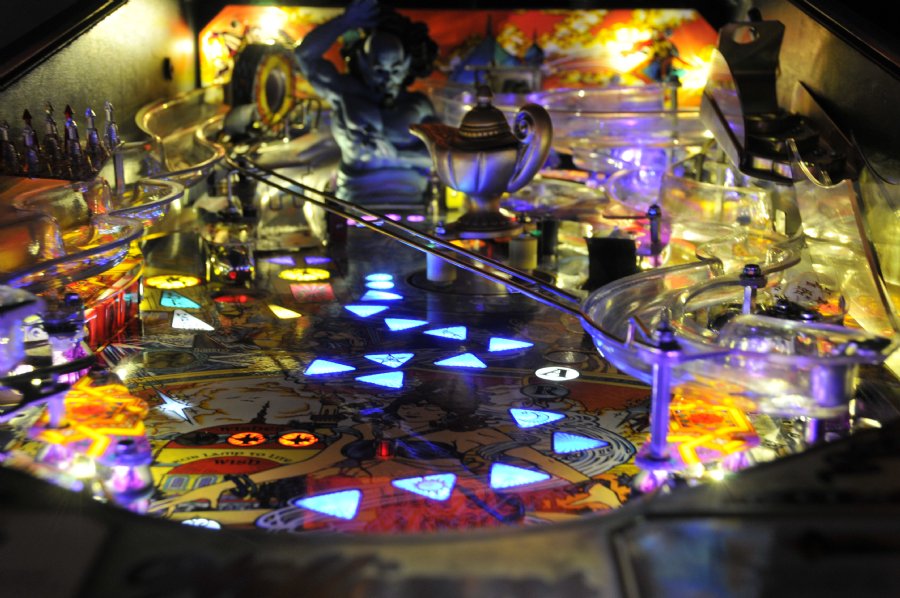

And is it possible to add a lamp on the lower right side of the table ?


 signature_14012021.jpg         DIRECT LINK TO MY TABLES http://www.vpforums....loads&mid=30858

                                               LINK TO MY 204 BACKDROPS : Design Resources/ Main Resources/Table Templates/Table Resources/Backdrops for VPX Tables (DT 16/9)  2.0


#287 flupper1

flupper1

    Enthusiast

  • Members
  • PipPipPip
  • 459 posts
  • Location:Netherlands

  • Flag: Netherlands

  • Favorite Pinball: Visual Pinball

Contributor

Posted 09 August 2019 - 04:41 PM

A 3D backdrop, incredible !!!!



I'm gonna be out of work ;)



Will there be lights in the eyes of genius ?



And is it possible to add a lamp on the lower right side of the table ?

In the genie in the table, yes, there are lights. Not in the backdrop, is that what you are asking?

Why would you want a lamp in the table on the lower right side?



#288 mlager8

mlager8

    Hobbyist

  • Members
  • PipPip
  • 14 posts

  • Flag: United States of America

  • Favorite Pinball: metallica pro

Posted 09 August 2019 - 05:04 PM

Here's a quick one I tried at work with my color calibrated monitor. Didn't see it in my cab but gave it a shot anyway. I wanted to do a cave of wonders style LUT so i pushed the contrast and orange/purple's around with mostly curves.
On the left or original, middle is the color move, and right is a way toned down night mode version so you dont burn your retinas out.



Here the regular LUT:


and the night mode LUT:


#289 batch

batch

    VPFroggie
